system_health_check::base::TopicCountCheckBase Class Reference

Abstract base class for checking Topic Publisher/Subscriber counts. More...

#include <topic_pub_sub_check_base.hpp>

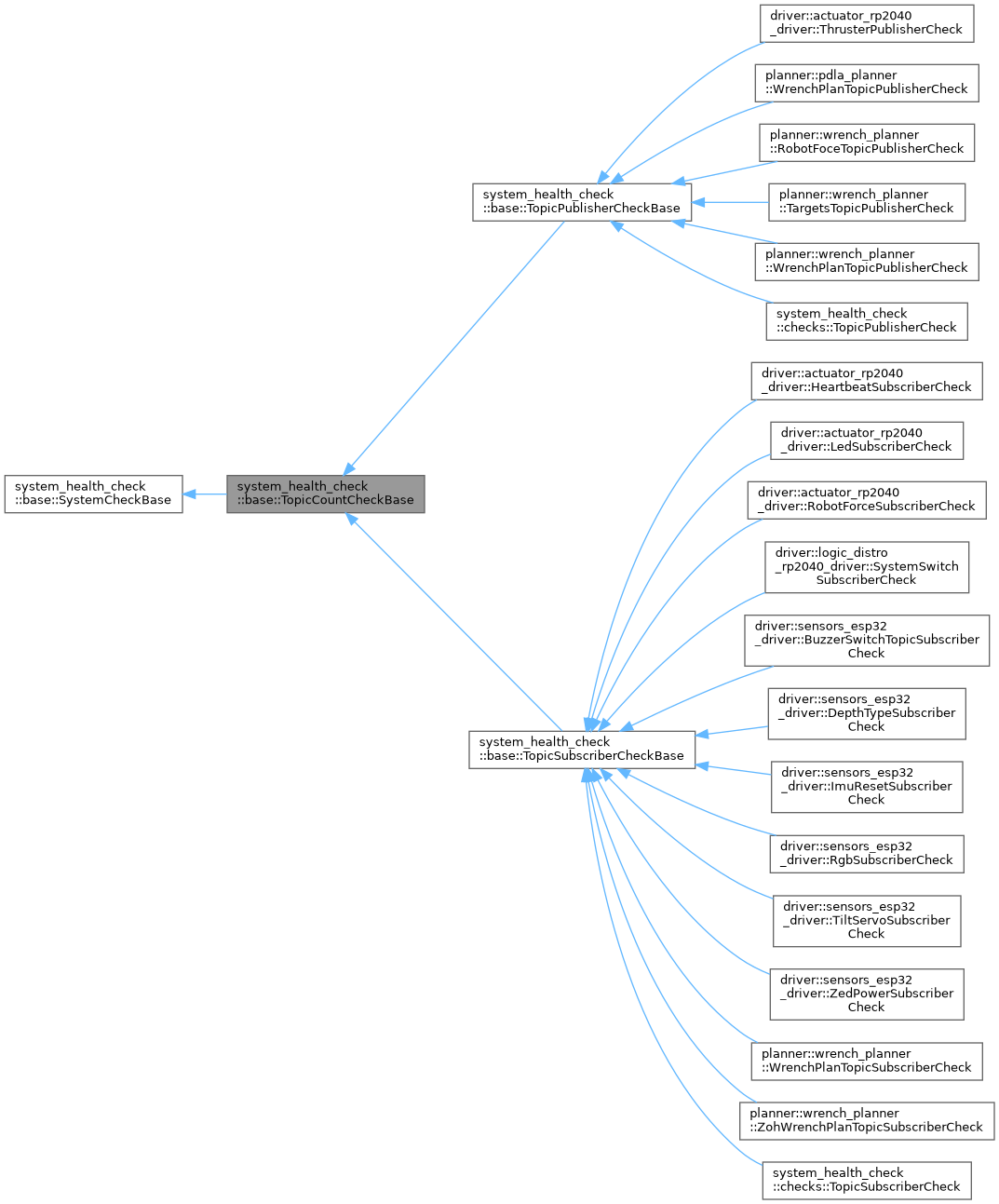

Inheritance diagram for system_health_check::base::TopicCountCheckBase:

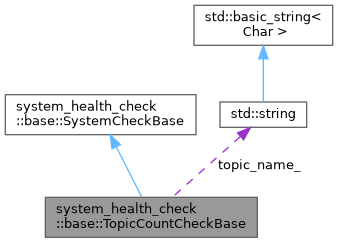

Collaboration diagram for system_health_check::base::TopicCountCheckBase:

Protected Member Functions
void	set_config (const std::string topic_name, const uint32_t timeout_ms, const size_t expected_count=1, const ComparisonMode mode=ComparisonMode::EQUAL)
	Configure the check settings.
virtual void	prepare_check (rclcpp::Node::SharedPtr node) override=0
	Prepares the check before execution.
virtual size_t	get_count (rclcpp::Node::SharedPtr node, const std::string &topic)=0
virtual std::string	get_target_type () const =0
Protected Member Functions inherited from system_health_check::base::SystemCheckBase
virtual std::string	get_unique_id () const
	Generates a unique identifier for the check instance.
virtual void	prepare_check (rclcpp::Node::SharedPtr node)
	Prepares the check before execution.
virtual bool	check_impl (rclcpp::Node::SharedPtr node)=0
	Actual implementation of the check logic.
virtual std::string	report_impl (rclcpp::Node::SharedPtr node)=0
	Generates a detailed report of the check.

Protected Attributes
std::string	topic_name_
uint32_t	timeout_ms_ = 1000
size_t	expected_count_ = 1
ComparisonMode	mode_ = ComparisonMode::GREATER_OR_EQUAL

Additional Inherited Members
Public Member Functions inherited from system_health_check::base::SystemCheckBase
virtual	~SystemCheckBase ()
bool	check (rclcpp::Node::SharedPtr node)
	Executes the system check with caching support.
std::string	report (rclcpp::Node::SharedPtr node)
	Generates a human-readable report of the check.

Detailed Description

Abstract base class for checking Topic Publisher/Subscriber counts.

Member Function Documentation

get_count()

virtual size_t system_health_check::base::TopicCountCheckBase::get_count ( rclcpp::Node::SharedPtr  node, const std::string &  topic  )

protectedpure virtual

get_target_type()

virtual std::string system_health_check::base::TopicCountCheckBase::get_target_type ( ) const

protectedpure virtual

prepare_check()

virtual void system_health_check::base::TopicCountCheckBase::prepare_check ( rclcpp::Node::SharedPtr  node )

overrideprotectedpure virtual

Prepares the check before execution.

Parameters

node	Shared pointer to the ROS 2 node.

Derived classes can override this function to perform any necessary setup.

Reimplemented from system_health_check::base::SystemCheckBase.

set_config()

void system_health_check::base::TopicCountCheckBase::set_config ( const std::string  topic_name, const uint32_t  timeout_ms, const size_t  expected_count = 1, const ComparisonMode  mode = ComparisonMode::EQUAL  )

inlineprotected

Configure the check settings.

Parameters

topic_name	Topic name to check.
timeout_ms	Timeout in milliseconds.
expected_count	Expected count of publishers/subscribers.
mode	Comparison mode (GREATER_OR_EQUAL or EQUAL). Default is ComparisonMode::EQUAL.

Member Data Documentation

expected_count_

size_t system_health_check::base::TopicCountCheckBase::expected_count_ = 1

protected

mode_

ComparisonMode system_health_check::base::TopicCountCheckBase::mode_ = ComparisonMode::GREATER_OR_EQUAL

protected

timeout_ms_

uint32_t system_health_check::base::TopicCountCheckBase::timeout_ms_ = 1000

protected

topic_name_

std::string system_health_check::base::TopicCountCheckBase::topic_name_

protected

---

The documentation for this class was generated from the following file:

• src/system_health_check/include/system_health_check/base_class/topic_pub_sub_check_base.hpp
